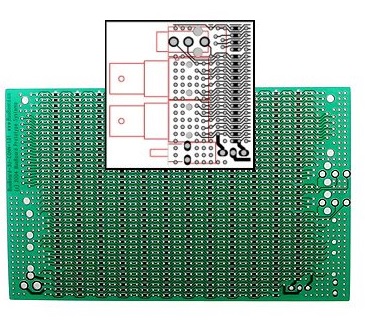

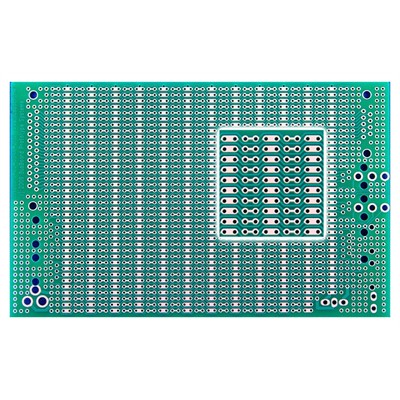

CIRCUIT-TEST Busboard 3U Protoboard 100x160mm, Connector footprints
Description
Footprint provided for commonly used connectors including: DB-9, DB-25, SPDT switch, RJ11 modular phone jacks (2), 1/8" sub-mini connectors (2) or modular handset jacks (2), coaxial power connector, BNC connectors (2).
Features
Footprint provided for commonly used connectors including: DB-9, DB-25, SPDT switch, RJ11 modular phone jacks (2), 1/8" sub-mini connectors (2) or modular handset jacks (2), coaxial power connector, BNC connectors (2)
BusBoard saves time! It reduces cut traces and jumper wires to speed prototype assembly; the BusBoard zig-zag pattern can be used to connect DIP I.C.s and DIL headers pin-to-pin
Single-sided, 1oz/ftsq copper, anti-tarnish coating for easy soldering; lead-free and RoHS compatible; high-quality FR4 glass-epoxy circuit board with solder mask
76 separate BusBoard traces, 0.037" holes are drilled on 0.1" (2.54mm) centers
Standard single height (3U) Eurocard/VME size: 3.9" wide, 6.3" long, 1/16" thick (100 x 160 x 1.6mm)
Additional information
Other features
Brand
CIRCUIT-TEST
Approval
RoHS compliant
